SKE standardized design belt conveyors for mineral ore crushing project
- Model
- B500/B650/B800/B1000/B1200
Item specifics
- Color
- Blue
- Application

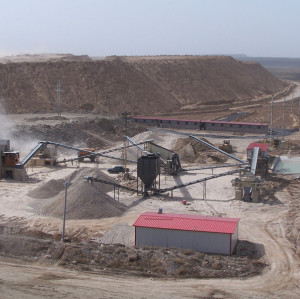

- Stone or mineral crushing plant
- Capacity
- 50-1200 tph
- Belt width
- 500-1600 mm
Review
Description
Description
SKE standardized design belt conveyors for mineral ore crushing project; Our company is based on the mining crushing and aggregate industry, and has accumulated a lot of experience and optimization measures for the use of bulk material conveying equipment. With continuous technical innovation and practice, it took two years to create the SKE series of fixed belt conveyors that customers are most satisfied with.
SKE series fixed belt conveyor is a bulk material conveying equipment with excellent performance, strong power, beautiful appearance and complete functions. Our company adopts the concept of modular design + warehouse-type stocking, and creatively achieves the ultimate goal of good quality ,low price and fast delivery.
Application
It is widely used in metallurgy, mining, coal, ports, power stations, building materials, chemicals, light industry, machinery, petroleum and other industries.
Features
1.Strong power, cost saving, noise reduction, environmental protection, safety and reliability;
2.Reducing resistance, improving accuracy, extending life, safety and reliability;
3. Professional design Real material and compact structure Excellent performance;
4. Constant pressure, clean, clean, patented design, worry-free maintenance;
5. Modular design; This management concept creatively achieves the ultimate goal of cheap and fast delivery of the SKE series fixed belt conveyor
6. Ingenuity, convenient installation, refusal to welding, rapid prototyping;
7. Application of C-type main frame: The SKE series uses steel plates to be bent into C-type main frame. Compared with traditional hot-rolled channel steel main frames, the cross-section height is higher, the bending resistance is stronger, the weight is lighter, and the appearance is more Beautiful.
8. Application of endless adhesive tape: SKE series uses nylon core endless adhesive tape. The use of endless adhesive tape will reduce the installation time on site, improve the quality level of adhesive tape joints, and improve the overall strength of adhesive tape.
Specifications
Model | Belt Width (mm) | Inclined Angle (°) | Recommended angle (°) | Belt Speed （m/s） |
Recommended belt speed (m/s) |
Capacity (tph) |
SKE500 | 500 | 0.8/1.0/1.25/1.6 | 160 | |||
SKE650 | 650 | 0.8/1.0/1.25/ 1.6/2.0 | 290 | |||
SKE800 | 800 | 1.6/2.0/3.15 |
450 |
|||
SKE1000 | 1000 | 700 | ||||
SKE1200 | 1200 |
1000 |
||||
SKE1400 | 1400 |
1500 |
Remark:
The conveying capacity is calculated according to the material bulk density of 1.6t / m3, the operation stacking angle of 20 °, the idler groove angle of 35 °, and the belt speed of 1.6m / s.
Max conveying capacity | |||||||||
Belt Width (mm) | Inclined coefficient | Bulk density （t/m³） | Conveying capacity based on different belt speed (tph) | ||||||
0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | 3.15 | |||
500 | 80 | 100 | 125 | 160 | 200 | 250 | -- | ||
650 | 140 | 180 | 230 | 290 | 360 | 450 | 570 | ||
800 | 230 | 280 | 360 | 450 | 560 | 700 | 900 |
||
1000 | 370 | 460 | 580 | 700 | 900 | 1100 | 1400 |
||
1200 | 550 | 650 | 850 | 1000 | 1300 | 1600 | 2000 |
||
1400 | 700 | 900 | 1100 | 1500 | 1900 | 2300 | 2900 |
||
Remark:
The different inclined angle and inclined coefficient match relations:
0~2°，1；3~4°,0.99；5~6°,0.98；7~8°,0.97；9~10°,0.95；11~12°,0.93；13~14°,0.91；15~16°,0.89；17~18°,0.85
